Lock-Up Release
A pressure release lever allows for easy tool removal after torquing, reducing the time and effort needed between fastener cycles.

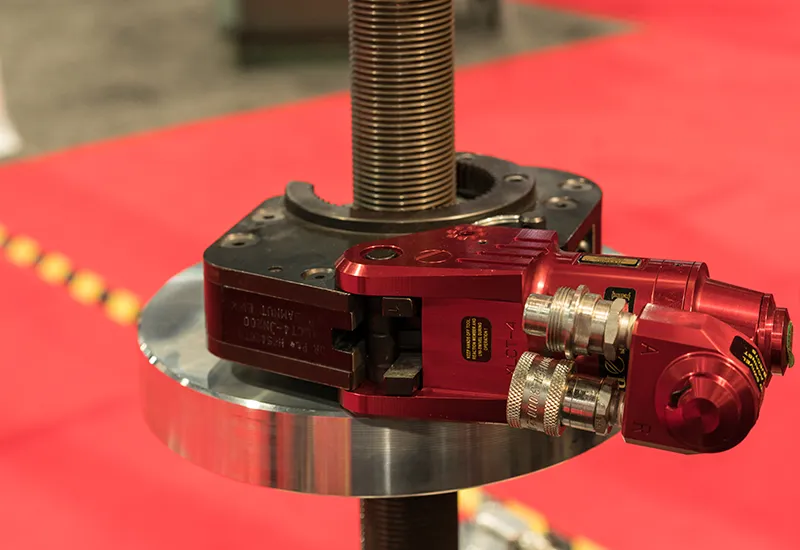

Image 1 of 4: HYTORC XLCT limited clearance hydraulic torque wrench — front view
XLCT Bolting System
Limited Clearance Hydraulic Torque Tool
Since 1992 the XLCT has been the world's best-selling limited clearance industrial bolting system, with over 100,000 units in use globally. Recognizable by its signature red housing, the XLCT has earned a reputation for quality and durability across industries from roller coaster construction to major bridge projects.
| Tool Type | Hydraulic — Limited Clearance |
|---|---|
| Radius | 1.03″ – 3.07″ |
| Weight | 2.05 – 23.80 lbs |
| Torque Range | 243.00 – 30,986.00 ft-lbs |
Documents
Key Features

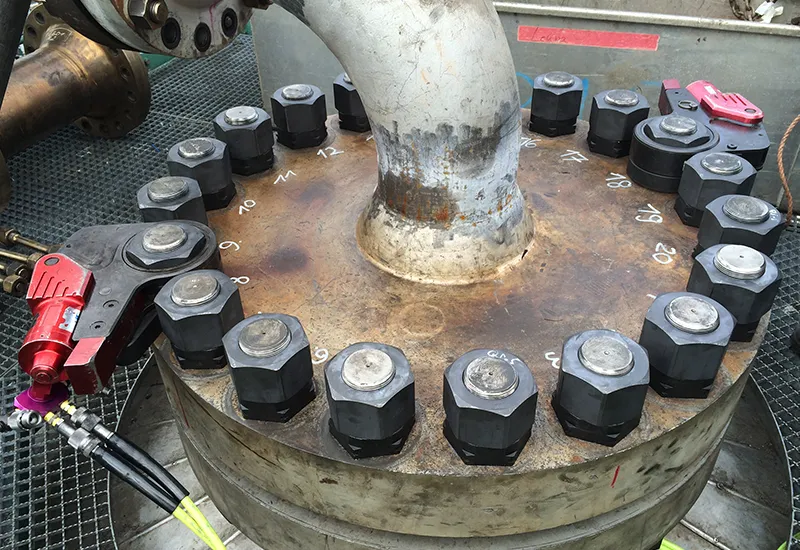

Zero-Slip Ratchet
A secondary pawl prevents reverse ratchet rotation during operation, enhancing both breakout power and torquing consistency.

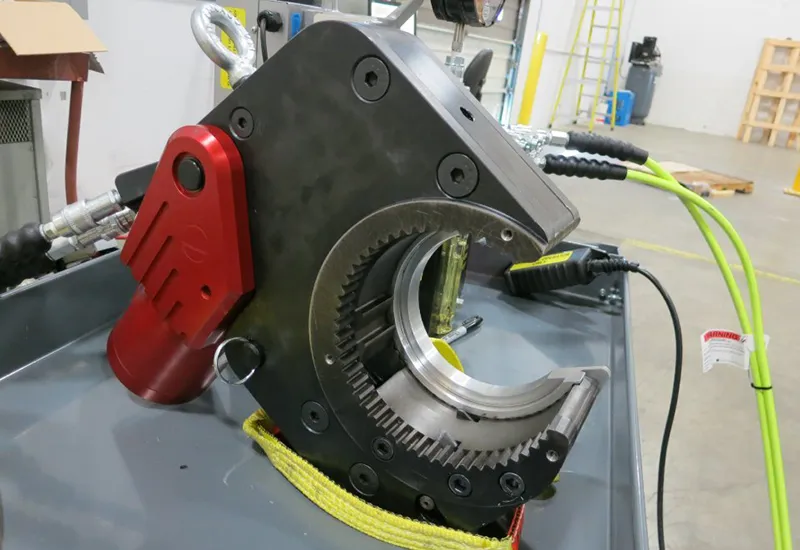

Multi-Use Accessories
Interchangeable cartridges support 6-point hex, 12-point hex, allen drives, square drives, open spanners, and additional drive configurations.
