ANSI/ASME Compatible
Designed to fit standard ANSI/ASME flanges, ensuring hassle-free installation.

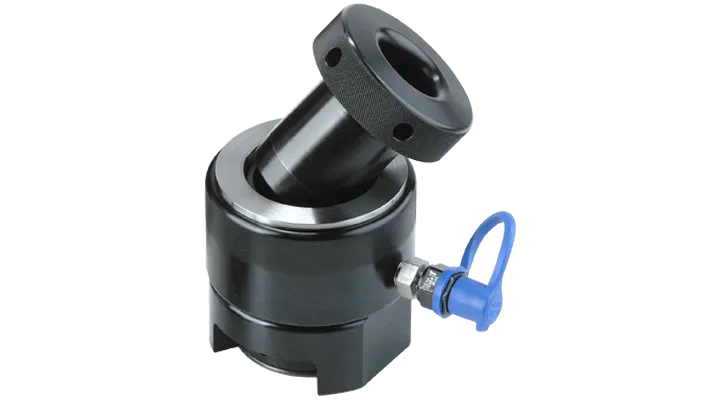

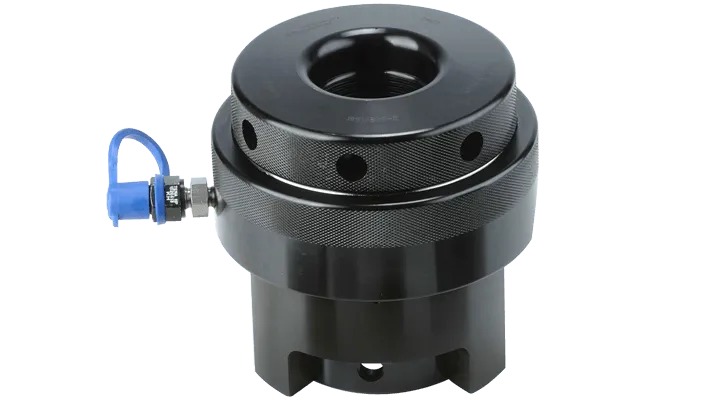

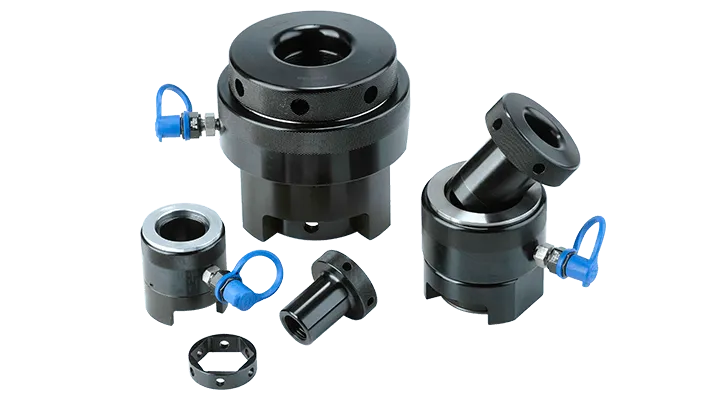

Image 1 of 4: HYTORC Topside Standard hydraulic bolt tensioner
Topside Standard Tensioners
Hydraulic Tensioner
HYTORC Topside Standard tensioners, paired with an interchangeable adapter kit, are designed to streamline your operations. They fit most hydraulic cylinders and handle a wide range of bolt sizes. Built from durable hardened steel alloy, they are a reliable, cost-effective tensioning solution for most standard flanges, compact and easy to handle.
| Type | Hydraulic Bolt Tensioner |
|---|---|
| Piston Stroke | 15 mm |
| Bolt Sizes | ¾″ – 4″ / M16 – M100 |
| Flanges | Standard ANSI/ASME |
| Material | Hardened steel alloy |
| Adapters | Interchangeable adapter kit |
Documents
Key Features
15 mm Stroke
Enables accurate tightening and loosening of bolts, meeting your specific bolting requirements.
Standard Sizing
Sizes ranging from ¾″ to 4″ and metric sizes from M16 to M100.
