Compact
Ideal for use in tight spaces for wind turbine maintenance.

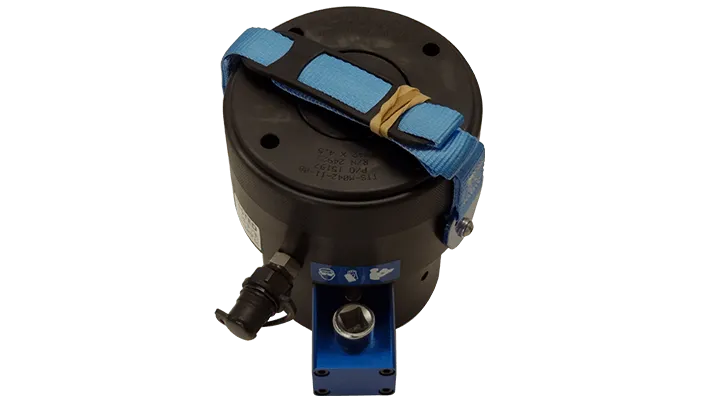

Image 1 of 4: HYTORC Wind Single-Stage hydraulic tensioner with blue carrying strap
Wind Single-Stage Tensioners
Wind Hydraulic Tensioner
HYTORC Wind Single-Stage hydraulic tensioners are designed for bolting applications with limited overhead clearance, making them ideal for wind turbine maintenance. These compact, powerful tools offer uncompromising performance in challenging environments and handle higher loads for demanding wind projects. Manufacturer-specific designs are available, including Siemens and Mitsubishi blade bearings and Clipper hub to mainshaft connections.
| Type | Single-stage hydraulic tensioner |
|---|---|
| Bolt Range | 1″ – 2½″ / M24 – M64 |
| Max Load | 494,560 lbf (2,200 kN) |
| Tensioner Height | 3.86″ – 6.38″ (98 – 162 mm) |
| Piston Stroke | 8 – 12 mm |
| Proof Load | 10.9 bolts (ASTM A490M, EN ISO 898-1) |
Documents
Key Features
Easy to Use
User-friendly, ensuring quick and efficient setup and operation.
Spring Return
Offers fast retraction, improving your productivity and efficiency in challenging environments.
